S53N – S63N – S63A

THICKNESS PLANES

Discover all models >>

FEATURES

TECHNICAL DATA

CATALOG

INFO REQUEST

S53N

Thickness Planers S53N Traditional Machines Fimal

S63A

Thickness Planers S63A Traditional Machines Fimal

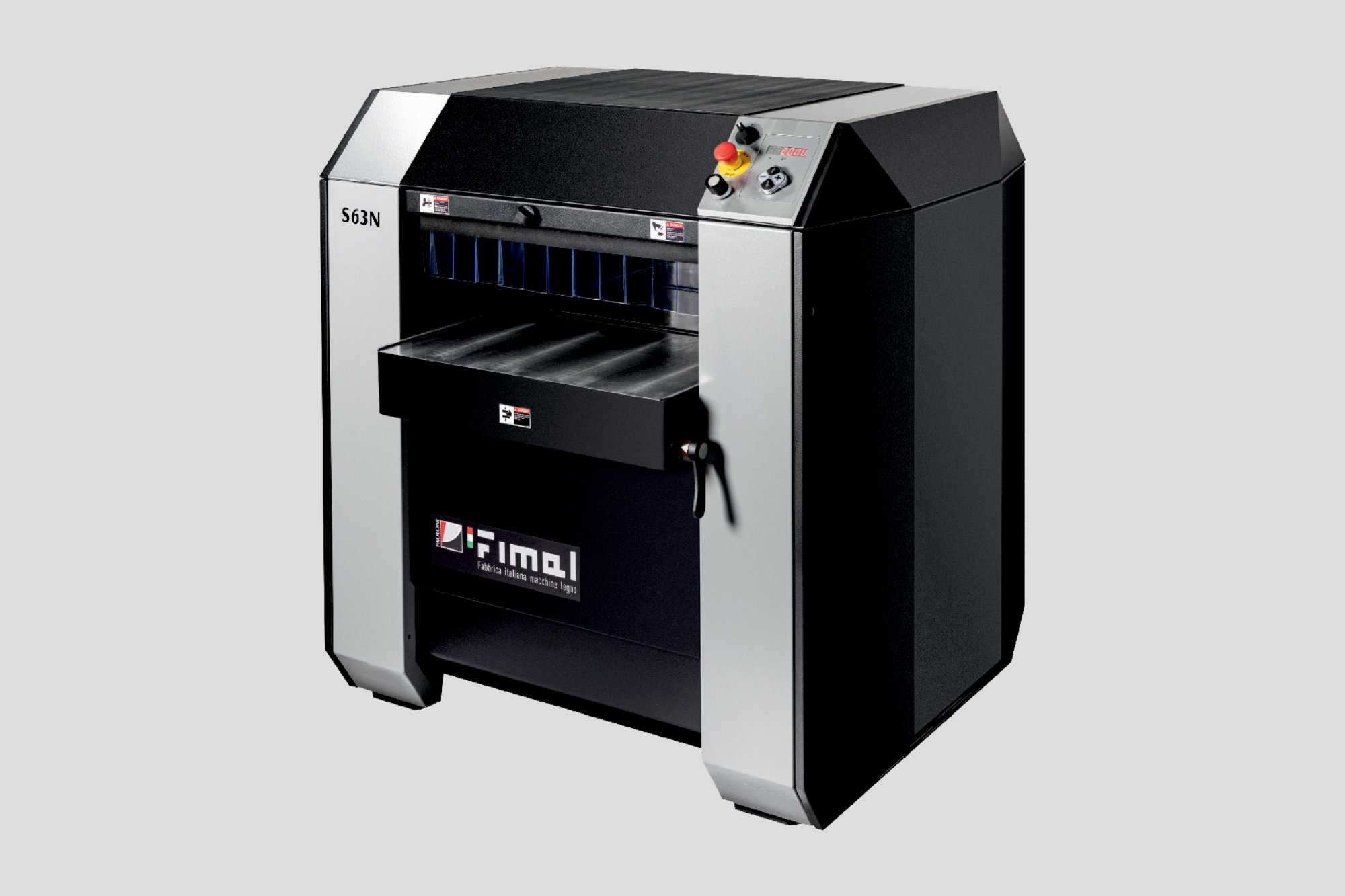

S63N

Thickness Planers S63N Traditional Machines Fimal

MAX. WORKING HEIGHT 310 MM

The very high work capacity from 3 to 310 mm allows optimum machine use and offers strong flexibility for wood machining.

Thickness Planers Traditional Machines Fimal
Thickness Planers Traditional Machines Fimal

WORKPIECE FEED

A reliable system for feeding the workpiece through with three large-diameter rollers mounted on independent connecting rods and ball bearings that grant an efficient and constant feed with all types of wood. The minimum length that can be feeded through is 250 mm

Thickness Planers Traditional Machines Fimal
Thickness Planers Traditional Machines Fimal

TABLE STABILITY

The system for raising the thicknessing table makes use of four screws supported at the ends to ensure greater stability. Two additional adjustable shoe-type side guides eliminate any possibility of play.

Thickness Planers Traditional Machines Fimal
Thickness Planers Traditional Machines Fimal

DISCOVER ALL THE FUNCTIONS OF THICKNESS PLANES FIMAL

S53N – S63N – S63A

DOWNLOAD CATALOG

TECHNICAL DATA

TECHNICAL DATA S53N S63N S63A
MAX WORKING WIDTH / WORKTABLE LENGHT mm 530 x 1030 630 x 1030 630 x 1030
MAX / MIN. WORKING HEIGHT mm 3 / 310 3 / 310 3 / 310
MAX. DEPTH OF CUT mm 8 8 8
MIN FEED LENGHT mm 250 250 250
4 KNIFE CUTTERBLOCK SPEED, Ø 120 MM. g/min 4800 4800 4800
FEEDING SPEED m/min 6 – 20 (with inverter) 6 – 20 (with inverter) 6 – 20 (with inverter)
CUTTERBLOCK MOTOR POWER kW/HP 4 / 5,5 5,5 / 7,5 5,5 / 7,5
SPEED – AIR CONSUMPTION WITH SUCTION OUTLETS Ø 150 MM. m/s-m3/h 26 / 1650 26 / 1650 26 / 1650
OVERALL DIMENSIONS mm 1130 x 1030 x 1200 1130 x 1030 x 1200 1130 x 1030 x 1200
NET WEIGHT Kg 650 750 750
NOISE EMISSION ACCORDING TO ISO 7960 STANDARD – THICKNESS PLANER m/”-m3/h 74 – 81,9 76,7 – 83,1 76,7 – 83,1
DUST EMISSION ACCORDING TO DIN 33893 STANDARD – THICKNESS PLANER mg/m3 0,62 0,64 0,64

O=ON REQUEST|X=STANDARD|=NOT AVAILABLE 53N 63N 53N
Hp 7.5 – hp 10 – hp 12.5 – hp 15 motor power O O O
Tersa system cutterblock >O >O >O
Sectional roller >O >O >O
Feeding speed adjustment with inverter >O >O >X

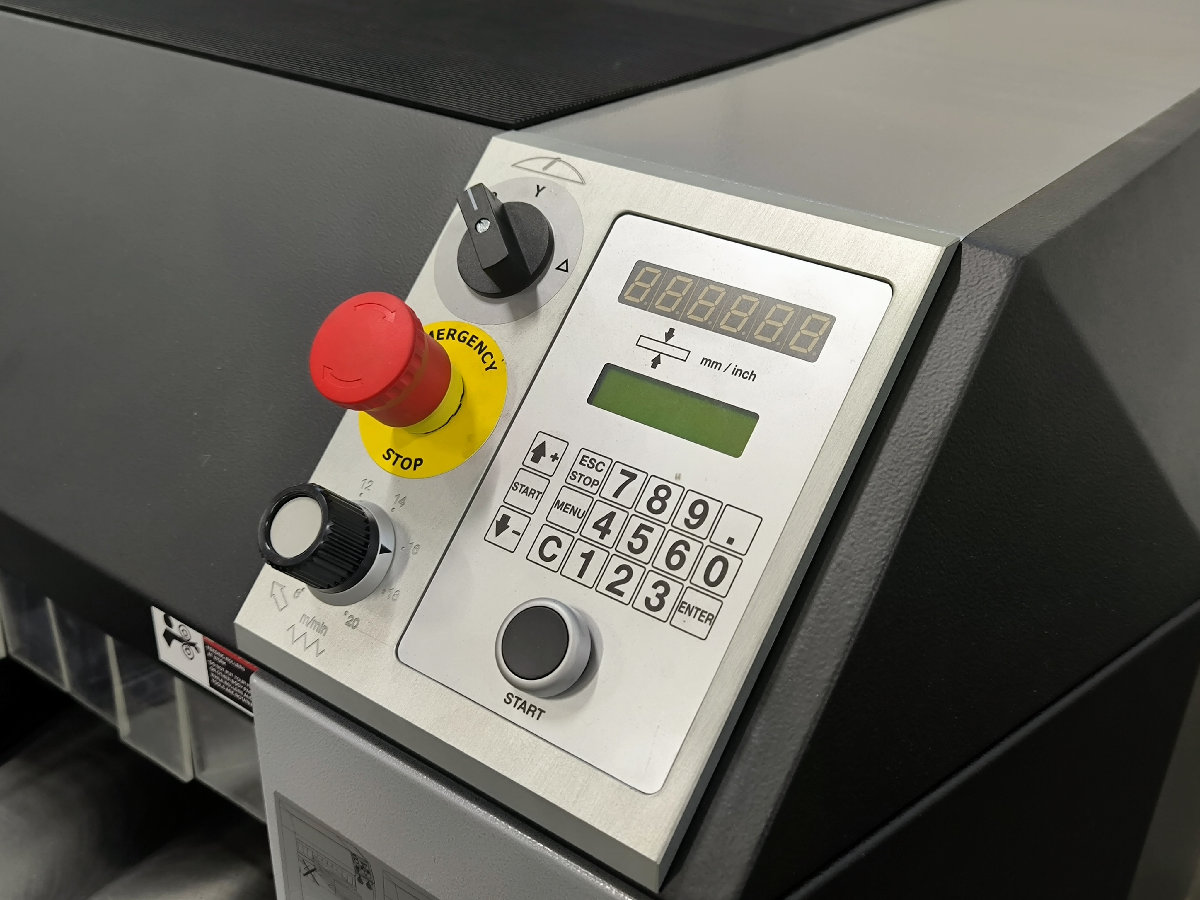

Electronic table height positioner >O >O >X
Electronic height indicator >O >X >
Outlet table extension mm 530 x 650 and mm 630 x 650 >O >O >O
Roller on the table 1 or 2 >O >O >O
Rubberized roller 1 or 2 >O O O
