Modelli: T160 – TX160

T160

Discover all models >>

FEATURES

TECHNICAL DATA

CATALOG

INFO REQUEST

T160L

Spindle Moulders T160L Fimal

T160

Spindle Moulders T160 Fimal

T160C

Spindle Moulders T160C Fimal

T160CF

Spindle Moulders T160CF Fimal

T160CL

Spindle Moulders T160CL Fimal

TX160L

Spindle Moulders TX160L Fimal

SECTIONED WORKING TABLE

The sectioned working table without the front encumbrance can be adjusted without using any tools by means of a patented hold that unlocks, locks and positions in the same time the sliding table even with the assembled tool, allowing then to get the max support for the workpiece.

Spindle Moulders T160 Traditional Machines Fimal
Spindle Moulders T160 Traditional Machines Fimal

SPINDLE MOULDER FENCE

The patented spindle moulder fence is equipped with 2 levers locking and unlocking it quickly by a 90° rotation, while the removing and quick positioning of the table fence takes place with motorized rotation and lifting.
The positions are checked by special sensors.

Spindle Moulders T160 Traditional Machines Fimal
Spindle Moulders T160 Traditional Machines Fimal

6TH SPEED FOR THE SANDING OPERATIONS

6th speed for the sanding operations (1500 r.p.m.). Tilting spindle with range +45º-45º (for TX versions except TX160 CF whose tilting range is +45º/-5º) with electronic display of the angle set and independent motor driven motion.

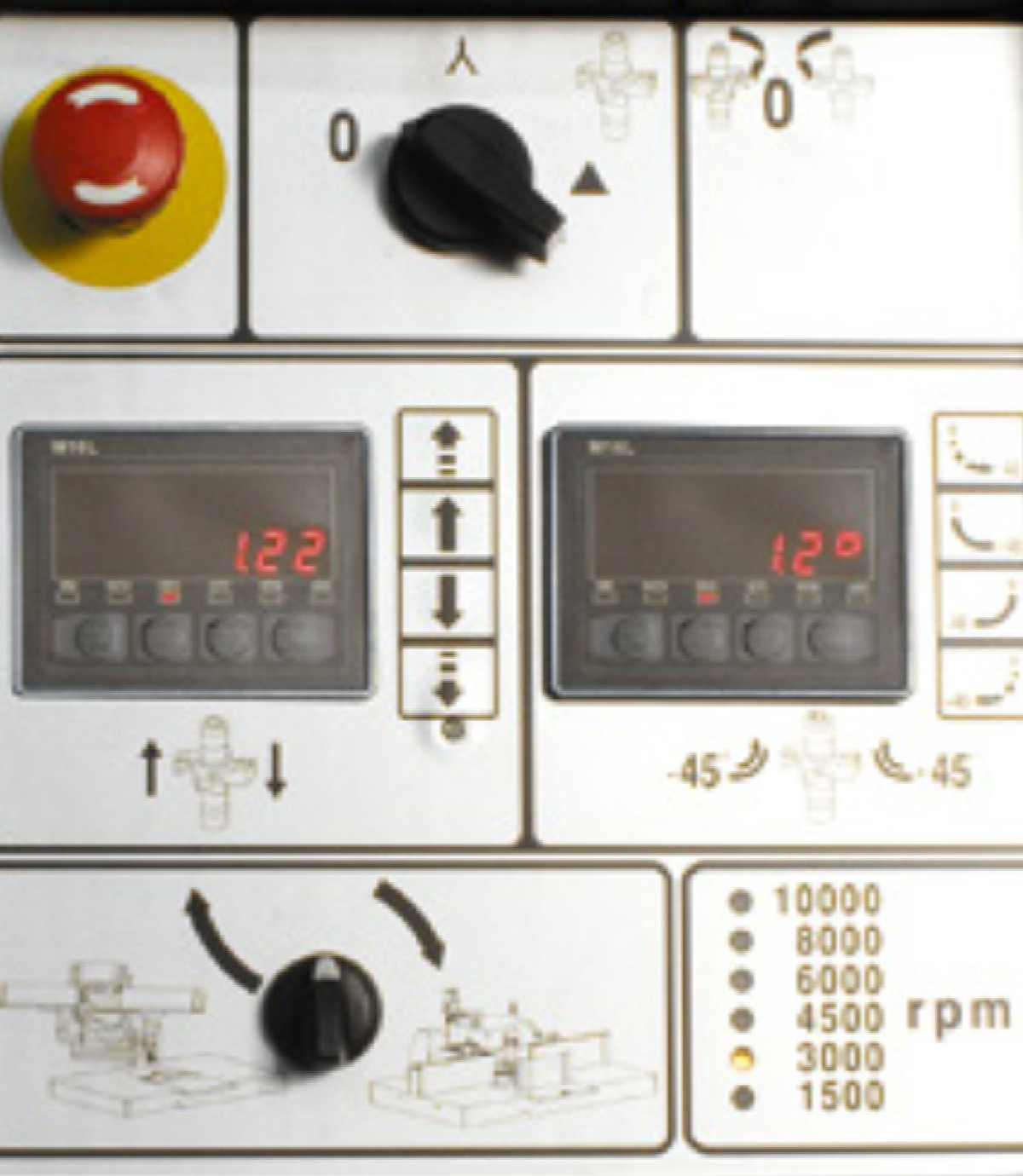

The control panels equipped with membrane pushbuttons. The rise and fall of the spindle is motorized (standard) and is mechanically read.

Spindle Moulders T160 Traditional Machines Fimal
Spindle Moulders T160 Traditional Machines Fimal

DISCOVER ALL THE FUNCTIONS OF THE FIMAL SPINDLE MOULDERS

T160 – TX160

DOWNLOAD CATALOG

TECHNICAL DATA

TECHNICAL DATA
T160 TX160
T160C TX160C
T160L TX160L
T160CL TX160CL
T160CF TX160CF
TABLE DIMENSIONS mm 1200×780 1800×780 2500×780 2500×780 1200x(475+260)
MAX SIZE OF OPENING IN THE TABLE (Ø / h) mm 320 x 50 320 x 50 320 x 50 320 x 50 320 x 50
CARRIAGE DIMENSION / STROKE mm / 900×370/900 / 900×370/900 1200×310/1100
TABLE HEIGHT mm 900 900 900 900 900
TABLE EXTENSION MAX LENGHT mm / / 400 400 /
MAX SPINDLE HEIGHT ABOVE TABLE / STROKE mm 180/230 180/230 180/230 180/230 180/230
SPINDLE SPEED – Ø ON REQUEST g/min 1500 / 3000 / 4500 / 6000 / 8000 / 10000
SPINDLE TILTING RANGE °
/ -45°/+45°
/ -45°/+45°
/ -45°/+45°
/ -45°/+45°
/ -5°/+45°
MOTOR POWER KW 5,5 (HP7,5) 5,5 (HP7,5) 5,5 (HP7,5) 5,5 (HP7,5) 5,5 (HP7,5)
NET WEIGHT Kg
460 480
700 720
640 660
800 820
480 500
SOUND EMISSION ACCORDING TO ISO 7960 RULE-MILLING WORK La eq [dB(A)] 83.9 – 87.3 83.9 – 87.3 83.9 – 87.3 83.9 – 87.3 83.9 – 87.3
DUST EMISSION ACCORDING TO DIN 33893 RULE-MILLING WORK mg/m3 0,47 0,47 0,47 0,47 0,47

ON REQUEST:

  • Overload protection
  • Increased motor power
  • Electromagnetic brake
  • Emergency push – button
  • Guard for works on the spindle
  • Guard for works with the fence
  • Mk5 interchangeable spindle
  • Spindle speed led indicator
  • Reverse spindle rotation
  • Rise & fall electric lifting read-out

FOR MORE INFO

For further details about machines, retailers and technical features.
